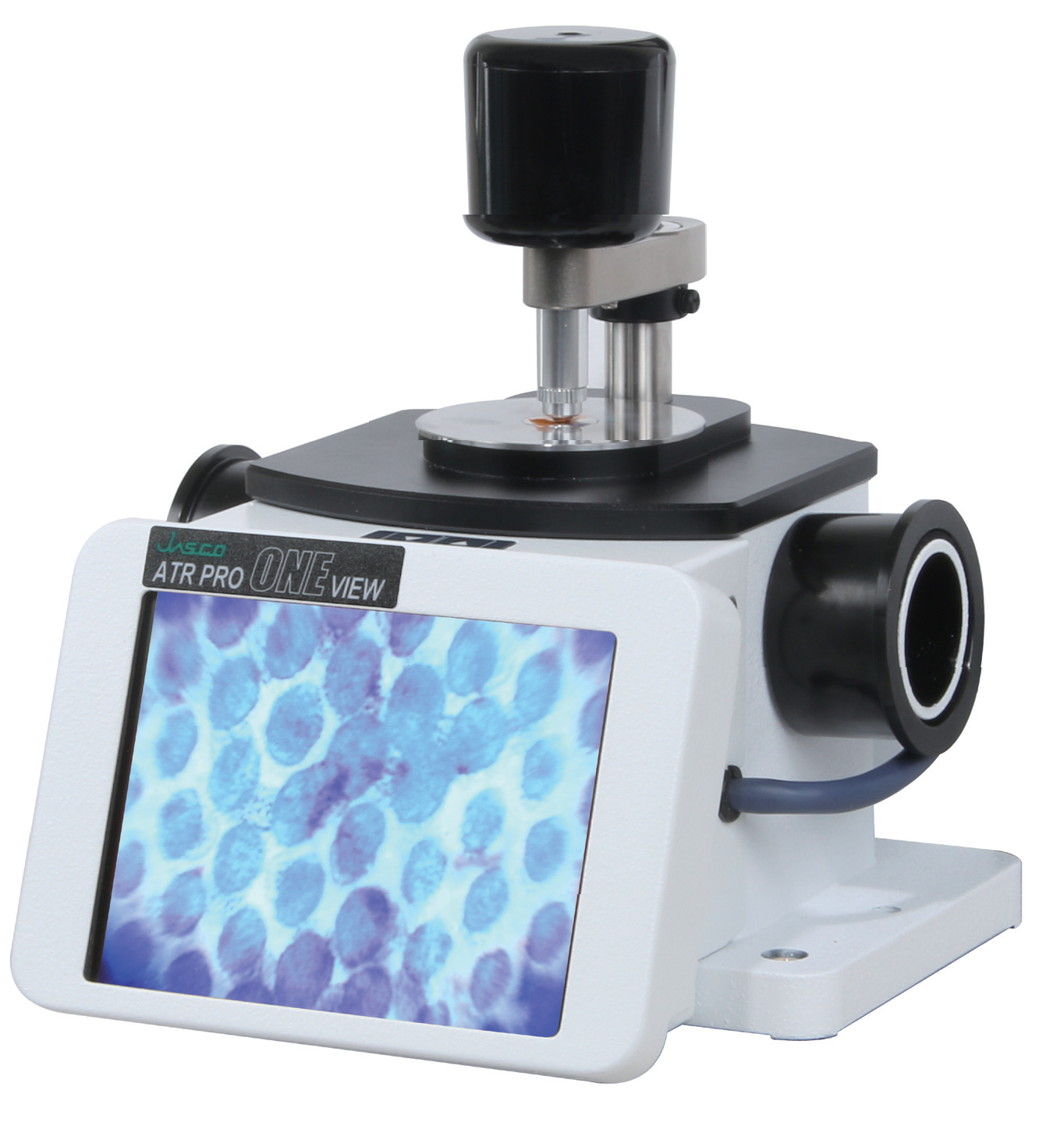

Jasco ATR Pro ONE View

High-clarity observation ATR accessory

The ATR Pro ONE View uses the latest high-throughput diamond prism for sample measurement and observation directly through the prism.

Wide area and high-definition viewing are achieved using a combination of a unique illumination method and survey optics. The observed image is combined with spectral data and collected automatically.

The ATR Pro ONE View system uses the simplicity of ATR to measure very small samples with detailed observation for accurate sample positioning with a permanent record of the measurement location.

System highlights

• Measurement range 10,000 to 300 cm-1 (30 cm-1 as an option)
• High clarity sample observation with picture recorded in the sample spectrum file
• Measure samples as small as 50 to 100 μm
• The ATR Pro One View without LCD monitor can be worked for sample observation in evacuated system
