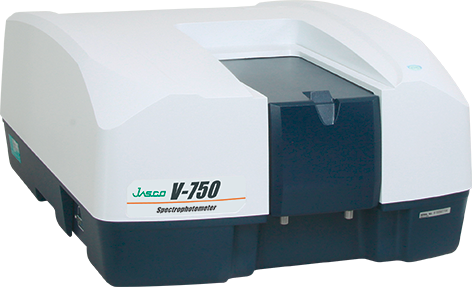

Jasco V-750 UV-Vis double beam spectrophotometer

V-750 spectrophotometer

V-750 is a double beam spectrophotometer with a single monochromator and photomultiplier tube detector. The high sensitivity of the photomultiplier tube detector enables accurate measurements of low concentration samples with excellent linearity up to 5 Abs. By controlling the high voltage applied to the PM tube, the dynode feedback electrical process allows a wider dynamic range. The fully symmetrical optical design results in a high optical throughput, allowing the bandwidth to be set down to 0.1 nm for high resolution work. V-750 supports various optional accessories for liquids and solids, providing sample measurements for a wide variety of sample shapes and volumes.

Unique features:

• Standard working range of 190 to 900 nm and variable spectral bandwidth from 0.1 nm
• RMS noise of 0.00003 Abs and Dynamic Range of 5 Abs
• Diffuse reflectance measurement using Integrating Spheres with a light trap
• The ‘L’ Mode and ‘M’ mode spectral bandwidth settings
• True double-beam
• IQ Accessory function
• Validation and Daily Check programs
• More than 70 accessories and over 30 optional programs
• Cross-platform software package, Spectra Manager II, upgradable on-field to CFR version
