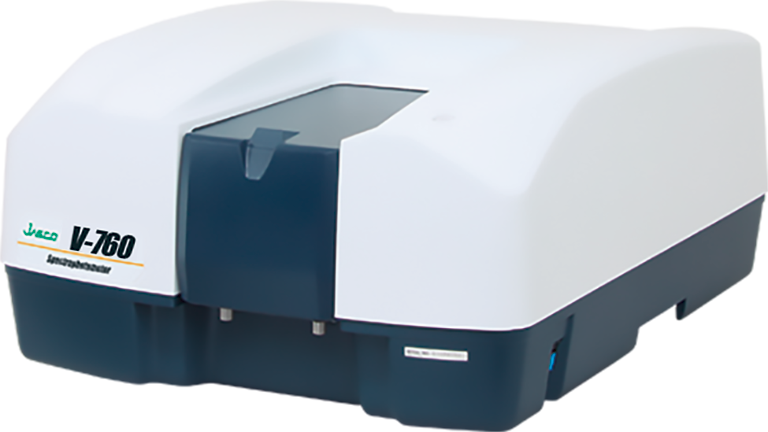

Jasco V-760-CFR UV-Vis double monochromator spectrophotometer

V-760-CFR spectrophotometer

V-760-CFR is a double beam spectrophotometer with a double grating monochromator covering the wavelength range of 187-900 nm. Unlike similar instruments which use a premonochromator and main monochromator, V- 760-CFR incorporates two fully symmetrical monochromators. This unique optical design provides higher resolution with extremely low stray light of 0.00008% which enables measurements of highly absorbing samples and is effective for filter measurements approaching 0%T.

Unique features:

• Standard working range of 187 to 900 nm and variable spectral bandwidth from 0.1 nm
• Double Monochromator spectrophotometer able to achieve a Stray Light of 0.00008% and a Dynamic Range of 8 Abs
• Diffuse reflectance measurement using Integrating Spheres with a light trap
• The ‘L’ Mode and ‘M’ mode spectral bandwidth settings
• True double-beam
• IQ Accessory function
• Validation and Daily Check programs
• More than 70 accessories and over 30 optional programs
• The cross-platform software package Spectra Manager CFR provides features to support laboratories for compliance with 21 CFR Part 11
