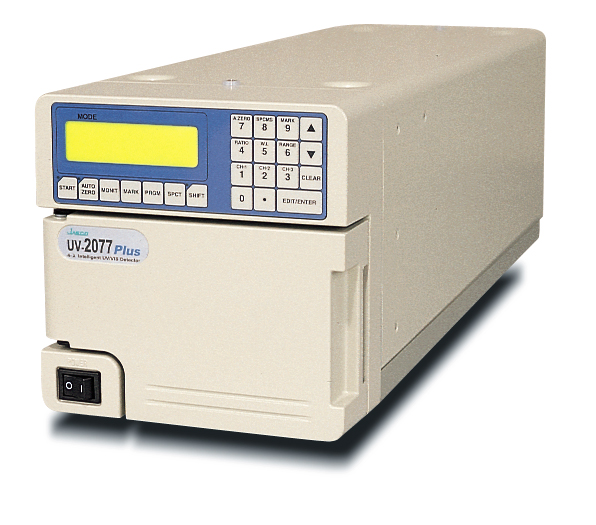

Jasco UV-2077 multi-wavelength UV/VIS detector

Multi-wavelength UV/VIS detector

The Jasco model UV-2077 is a multi-wavelength UV/VIS detector based upon a photo-diode array detection system. The state-of-the-art optics and electronics are housed in the same compact case as other LC-2000Plus series detectors including the UV-2070. The UV-2077 has a unique design feature that separates it from both conventional detectors which employ scanning/readout shift registers or incorporates a 36-element discrete diode-array, enabling truly simultaneous 36-channel detection in real-time with maximum sensitivity and selectivity. This configuration allows simultaneous monitoring of chromatograms at 4 different wavelengths or 3 wavelenghts and a ratio of 2 others. The advanced computer technology allows the wavelengths to be selected in 1 nm increments. In addition the detector is able to acquire spectra truly on-the-fly without interrupting the chromatogram. The UV-2077 allows the analyst to obtain the high quality chromatographic and spectral data of an expensive PDA detector in an affordable, compact and easy to use package. The UV-2077 can easily be interfaced with the JASCO HPLC system, The package offers full automation of the Jasco HPLC system including the UV-2077.

Features:

• Significantly lowered baseline noise and drift due to unique electronics and optics
• Uninterrupted chromatographic peaks and on-flow spectral collection utilizing single beam photometry
• Compact 150 (W) x 150 (H) x 470 (D)mm size matching other LC-2000Plus series modules
