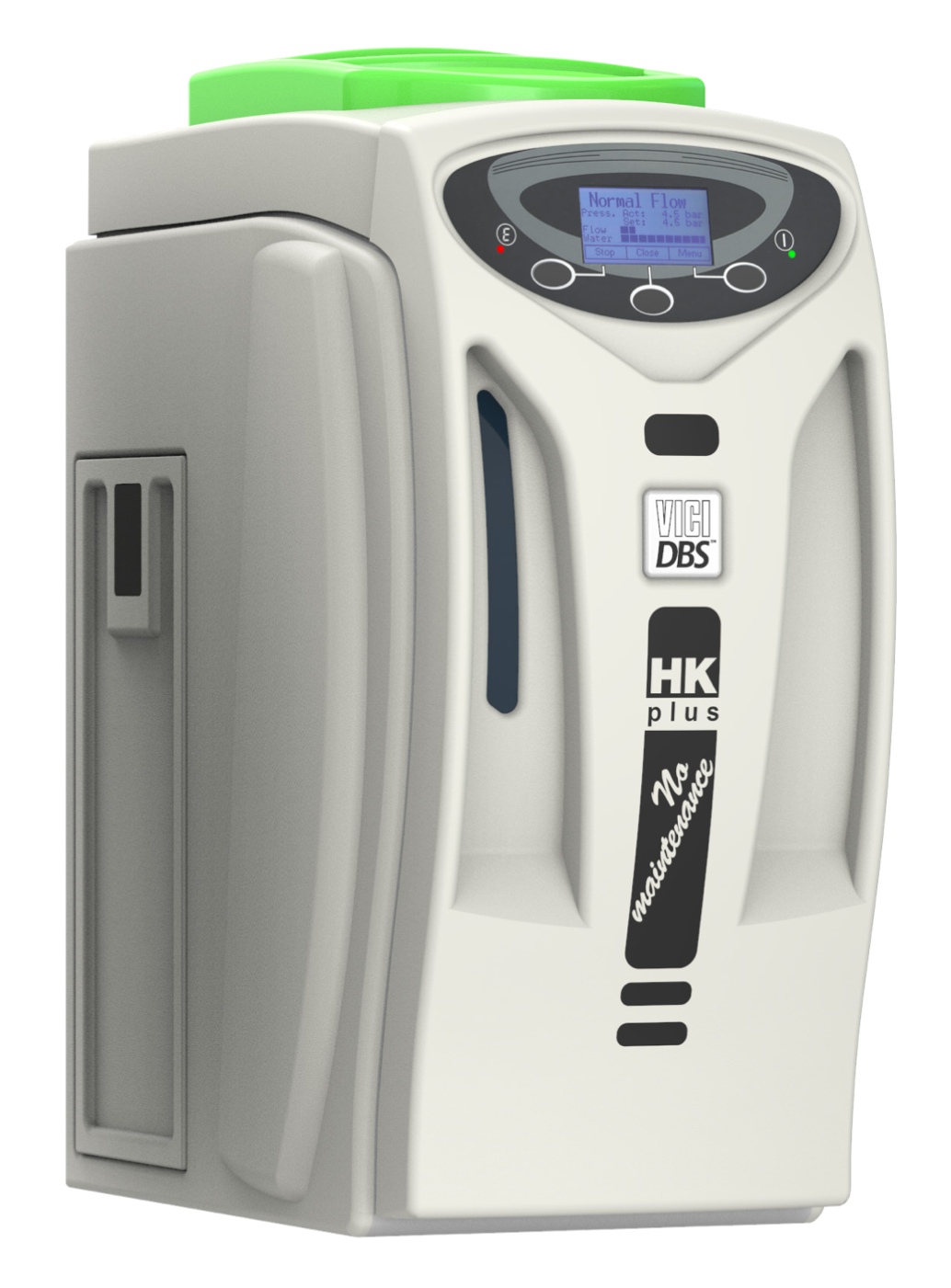

VICI DBS HK Plus hydrogen generator

HK Plus hydrogen generator

The VICI DBS HK Plus hydrogen generators offer the optimum combination of safe operation, reliability and performance. Designed as a hazard free alternative to high pressure cylinders, all that is required is deionized water and a standard electrical supply for weeks of continuous operation.

Utilizing the VICI DBS proprietary prepared field proven PEM (proton exchange membrane) incorporated inside a 100% titanium cell, provides superior generator performance and cell life. The unique high pressure permeation membrane drying system eliminates the requirement for desiccant cartridges along with the associated downtime and cost. Innovative software control allows unrivaled operational performance and safety.

With a maximum output capacity of 250 mL/min, one generator can supply up to 5 GCs. The compact design allows the generator to be installed directly in the laboratory eliminating the requirement for long gas lines and guaranteeing the delivery of high purity fuel gas to your GC.

A sophisticated and easy to use control system connected to a touch screen control continuously monitors the vital operating parameters to ensure a safe and consistent performance. Built in sensors will shut the generator down if internal/ external leaks are present, contaminated water, low water or over pressure. This is why the VICI DBS generators meet the strict safety guidelines to be certified for CE, FCC, MET (UL and CSA compliant).

Features:

• Produces a continuous supply of H2
• On-demand supply 24/7
• Flow rate: 100 to 250 mL/min
• Purity: 99.999%
• Pressure: 7 barg (100 psig)
• Proprietary 100% titanium cell technology
• Unique permeation membrane drying system
• USB connectivity
• 2-year complete cell and product warranty
• Easy to install, operate and maintain
