VICI DBS HP Plus tower nitrogen generator
Resource type:
Brochure
Format:
pdf
Date of creation:
27 March 2020
Library code:
12962

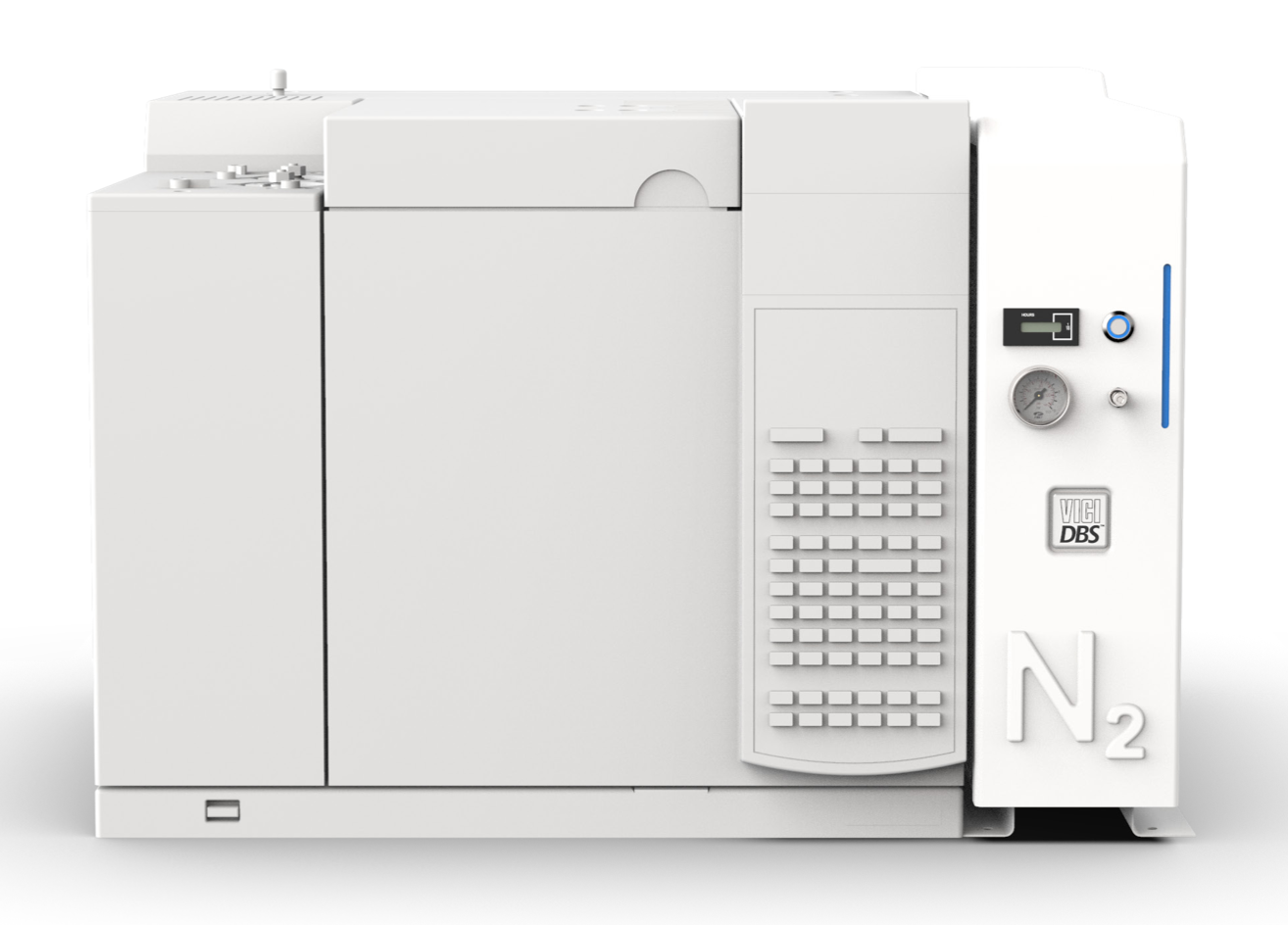

HP Plus tower nitrogen generator
The VICI DBS HP Plus tower produces nitrogen by utilizing a combination of filtration and pressure swing adsorption (PSA) technology. Standard compressed air is filtered by high efficiency coalescing filters to remove all contaminants down to 5 micron. For ultra sensitive applications such as GC carrier and make-up gas, units also include the additional heated catalyst module to ensure hydrocarbons are removed to <0.1 ppm. The air then passes through two columns filled with a proprietary blended carbon molecular sieve (CMS) which adsorbs O2, CO2 and moisture. These are desorbed to the atmosphere during the pressure swing cycle leaving a supply of ultra pure nitrogen.
Features:
- Produces a continuous supply of high purity nitrogen
- On-demand supply 24/7
- Flow rate: 200 to 4000 mL/min
- Purity: up to +99.999% & <0.1 ppm THC
- Pressure: up to 5 barg (75 psig)
- Proprietary carbon molecular sieve technology
- 2-year complete product warranty
- Easy to install, operate and maintain
