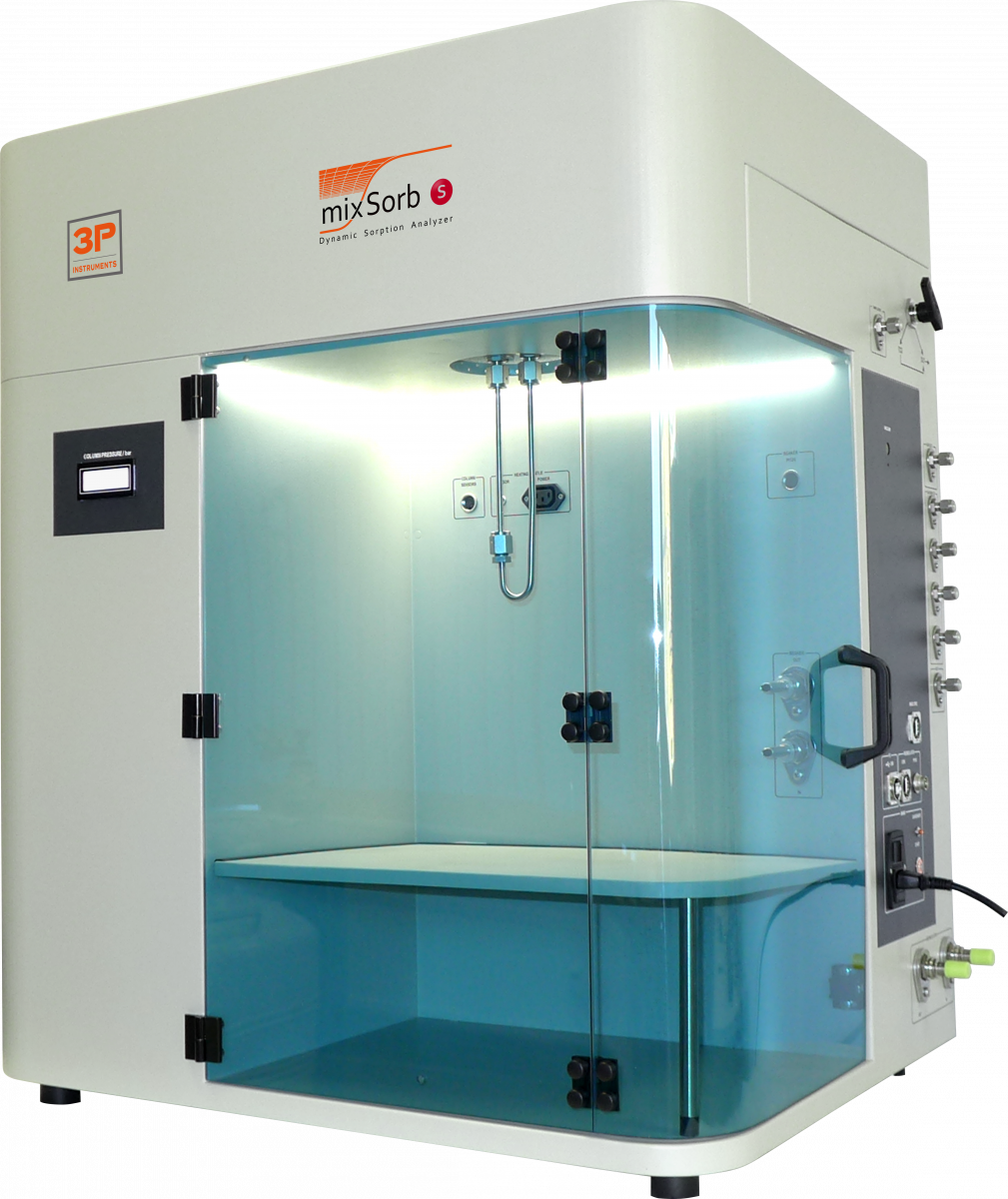

3P mixSorb S dynamic sorption analyzers
mixSorb S series breakthrough curve analyzers
The mixSorb S series provides unique capabilities to investigate novel materials, like MOFs, COFs etc. by mixed gas adsorption. Novel materials are in the focus of research in recent last years. These materials can have very high selectivities due to their extraordinary surface chemistry and have to be investigated by mixed gas sorption for a deeper understanding of their sorption behavior.
The mixSorb S series is designed for very small sample amounts (powders). Especially R&D groups have now the possibility to measure newly synthesized materials by complex dynamic sorption processes in a wide field of different gas- and gas/vapor-mixtures by using different parameters like pressure, temperature gas velocity/dwell times, cycle tests and much more. These experiments allow to get data, next to the effective adsorption performance, of kinetics, co-adsorption phenomenon or displacement effects, sorption selectivities, data of gas mixture adsorption and heat balance of the sorption process.
By using the available vapor option it is possible to work up to 2 completely independent evaporators to form fully automated individually gas/vapor mixtures fully automated. These data allow a profound look at the co-adsorption phenomenon or displacement effects.
The related modeling software 3P sim made it possible to calculate and to modify pure gas isotherms as well as breakthrough curves and to calculate the behavior of gas/vapor-mixture equilibria.
Overview of the models of the mixSorb S series
| Model | S | S eco | S ambient | SHP eco | SHP |
| Pressure range | 0.1 - 10 bar | 0.1 - 10 bar | 0.1 bar - ambient | 0.1 - 35 bar | 0.1 - 68 bar |
| Number of MFCs | 2 - 4 | 2 - 4 | 2 - 4 | 2 - 4 | 2 - 4 |
| Required inlet pressure | 15 bar | 15 bar | 15 bar | 85 bar | 85 bar |
| Number of evaporators | Up to 2 | Up to 2 | Up to 2 | Up to 2 | Up to 2 |
| Pressure control | Yes | Yes | No | Yes | Yes |
| Simulation software | Included | Optional | Included | Optional | Included |
| Gas sensor | Yes | No | Yes | No | Yes |
| TCD | Includes 13 factory calibrations | Includes 1 factory calibration | Includes 13 factory calibrations | Includes 1 factory calibration | Incl. 13 factory calibrations |
| Sample bed temperature sensor | Up to 4 | Up to 4 | Up to 4 | Up to 4 | Up to 4 |
| Sample loading | < 0.1 cm³ – 5 cm³, customized adsorbers on requests | < 0.1 cm³ – 5 cm³, customized adsorbers on requests | < 0.1 cm³ – 5 cm³, customized adsorbers on requests | < 0.1 cm³ – 5 cm³, customized adsorbers on requests | < 0.1 cm³ – 5 cm³ customized adsorbers on requests |
| Temperature range heating mantle | Ambient – 400 °C | Ambient – 400 °C | Ambient – 400 °C | Ambient – 400 °C | Ambient – 400 °C |
| Temperature range circulator bath | -20 – 90 °C | -20 – 90 °C | -20 – 90 °C | -20 – 90 °C | -20 – 90 °C |
Specifications and benefits
- Investigation of co-adsorption and displacement
- Determination of sorption selectivity
- Estimation of applicability of synthesized materials in technical processes
- Dynamic adsorption and desorption experiments
- Determination of single- and multi-component adsorption data
- Investigation of kinetic performance of novel materials
- In-situ sample preparation up to 400 °C
- Fully automated control via PC by using mixSorb Manager
- Automated regulation of the adsorber pressure up to 8 bar
- Up to 4 high precision mass flow controllers
- Automated built-in gas and gas/vapor mixing
- Measurement of inlet and outlet gas composition
- Tempering of sample cell by thermostat automatically
- Monitoring of pressure drop along the sample cell
- Built-in Thermo Conductivity Detector (TCD); optional gas analysis via interfaced Mass Spectrometer
- Safety guard sensor for flammable gases for automatic shut down
- Enhanced Safety by intelligent illuminated workspace
Accessories
Custom made sample- and membrane cells
- Individual design of sample cell for different sample geometry
- Design of special membrane cells
Vapour option for mixSorb L
- To supply gas-/vapor mixtures
- Precise vapor dosing by fully automated and tempered saturator
- Built in up to 2 completely independent saturators
Vacuum option
- Allows connection of a vacuum pump for sample pre-treatment or measurment at lower pressures or for evacuation of the sample cell < 1 bar (membrane- or scroll-vacuum pump)
Mass spectrometer
- For investigation of ternary or quaternary gas mixtures
- Different mass spectrometers are available
