3P Dispersion Technology DT-300/DT-310 electroacoustic spectrometers

Zeta potential measurement in concentrated dispersions

The DT-300 works according to the electroacoustic principle and thus can analyze the zeta potential in dispersions in its original state (without dilution or modification). Further important colloidal parameters can be calculated like isoelectriv point (IEP), Debye-length, κa-value, Dukhin’sche number and surface charge density in case of strong non-polar solvents.

Due to the smart design of the probe (pulse-echo method, smooth surface) it can be easily used both for laboratory experiments and for process-near online measurements.

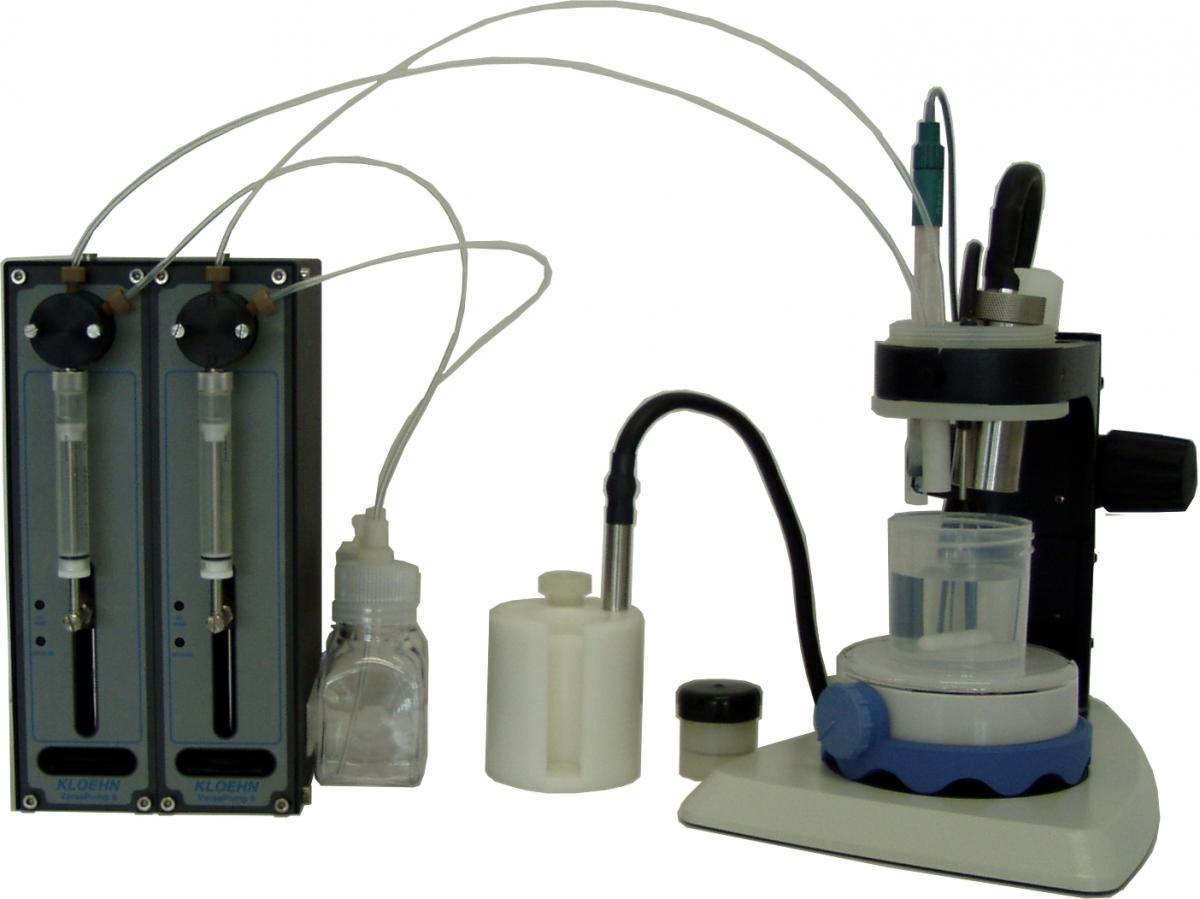

The electroacoustic spectrometer DT-310 offers the additional possibility of titration experiments by means of a titration unit with two separate controllable burettes. This fully software controlled unit is designed to enable the zeta potential measurement in dependence of the pH or the amount of an additive.


Zeta probe

Specifications and benefits

• Very short time of measurements (< 1 min)
• Very small sample amount (< 0,5 ml) necessary
• Applicable for both laboratory experiments and process-near online measurements
• Measurement of sedimenting or high viscous samples
• Characterization of dispersions in non-polar solvents as well as high electric conductive systems
• Fully automatic, quantitative titration experiments (acid/base, additives, DT-310)
• Can be delivered in combination with acoustic particle size measurement (DT-1202)

Accessories

Titration unit

This software controlled unit is designed to enable the particle size and zeta potential measurement in dependence of the pH or the amount of an additive. The system can programmed to carry out automatically different types of protocols (dosing amount of additive/acid/base, pH-value and time).

• Optionally one or two 5 ml-burettes
• pH: 0,5 – 13,5
• Minimal amount of titration: about 20 µl (depending on viscosity)
• Chemically resistant teflon probe
• Suitable also for high viscous additives

Electric conductivity probes for aqueous and organic solvents

Two different probes are available to measure the electric conductivity. Both are fully integrated in the DT-software.

• Conductivity probe for aqueous solvents: 1E-4 – 10 S/m
• Conductivity probe for organic solvents: 1E-11 – 1E-4 S/m

The probe for measurements in organic solvents is also available as a separate device DT-700.
