Image scanning and particle size and shape analyzer

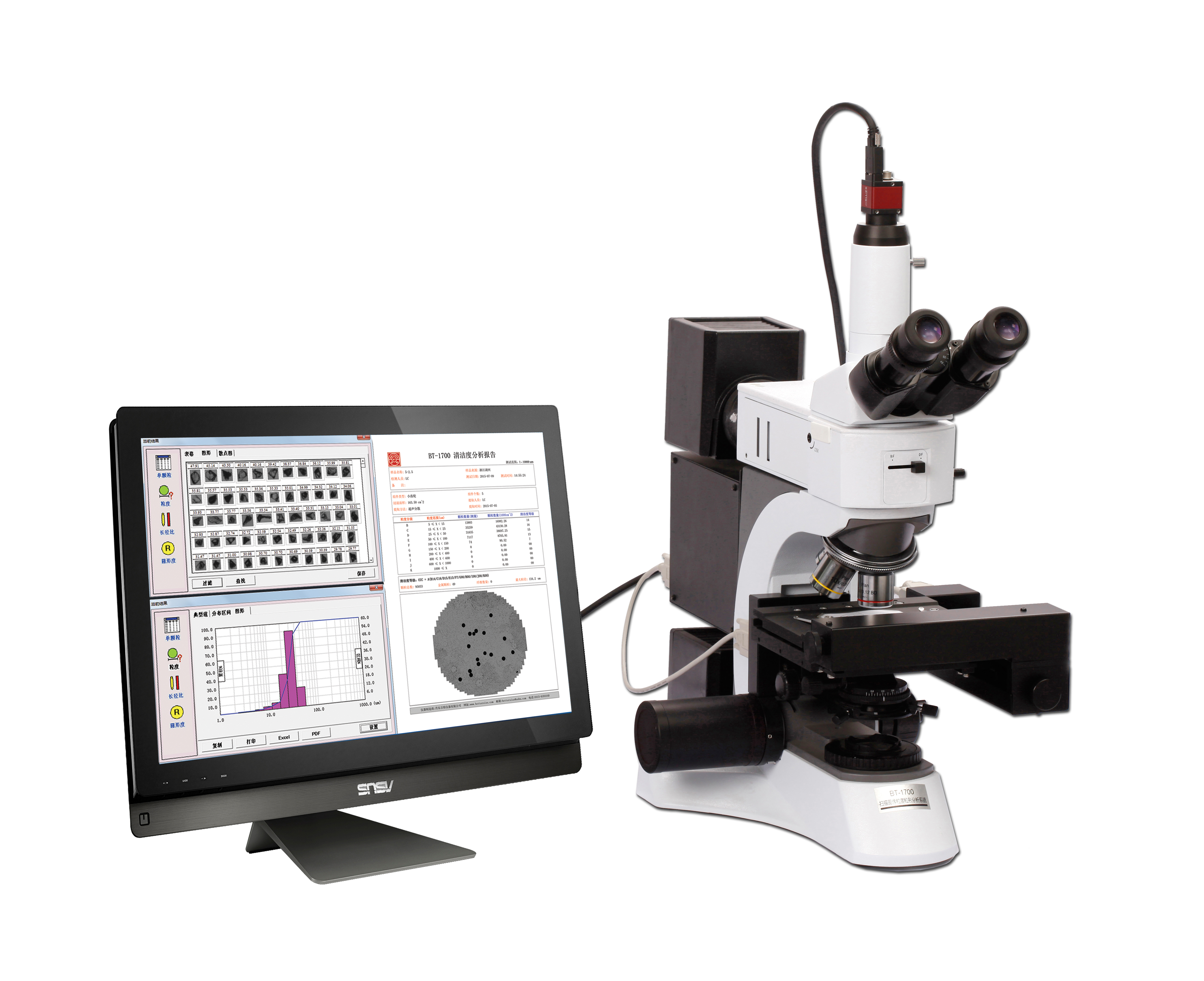

BeVision M1 is an automatic image scanning system for filter paper cleanliness analysis. Equipped with a metallurgical microscope, programmable motorized stage, autofocus function, and high-resolution CCD, BeVision M1 can capture and recognize each and every particle, automatically stitching the images to a large panoramic image.
Features:
- Measuring range: 1 um to 10000 um
- Magnification: 30-1000 times
- Repeatability: ≤1% (GBRM D50)
- Accuracy: ≤1% (GBRM D50)
- Measuring time: ≤10 minutes
- Omission ratio: ≤3% (no missing detection for particles more than 10 um in size)
- Particle recognition speed: ≥10000 pcs/min
- Scanned area: a 55 mm diameter circle
- Recognition accuracy of metal particles: ≥90%
- Recognition accuracy of fiber particles: ≥92%
- CCD imaging speed: 120frames/s
